Refractance Window Dryer Complete in all

Respect. Plug & Play Solution for Dehydration

Technical Specification of the Refractance

Window Dryer:

1.) Size of Drying Chamber :10 Meter X 2 Meter total effective area 20 Sq. Meters

2.) Space Occupied (L X W X H) : 12.4 X 3.8 X 2.2 Meters (Approx.)

3.) Thickness : 2 mm

4.) Bulk Density : 1196 Kgs/m3

5.) Drying Time : 60 Mins Approx.

6.) Feed Capacity :47 Kgs/Hr Approx.

7.) Input Moisture : 60%

8.) Output Moisture : 3%

9.) Output Capacity : 19 - 20 Kgs/Hr

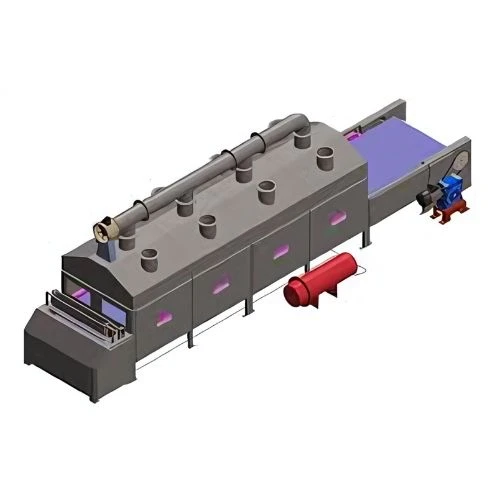

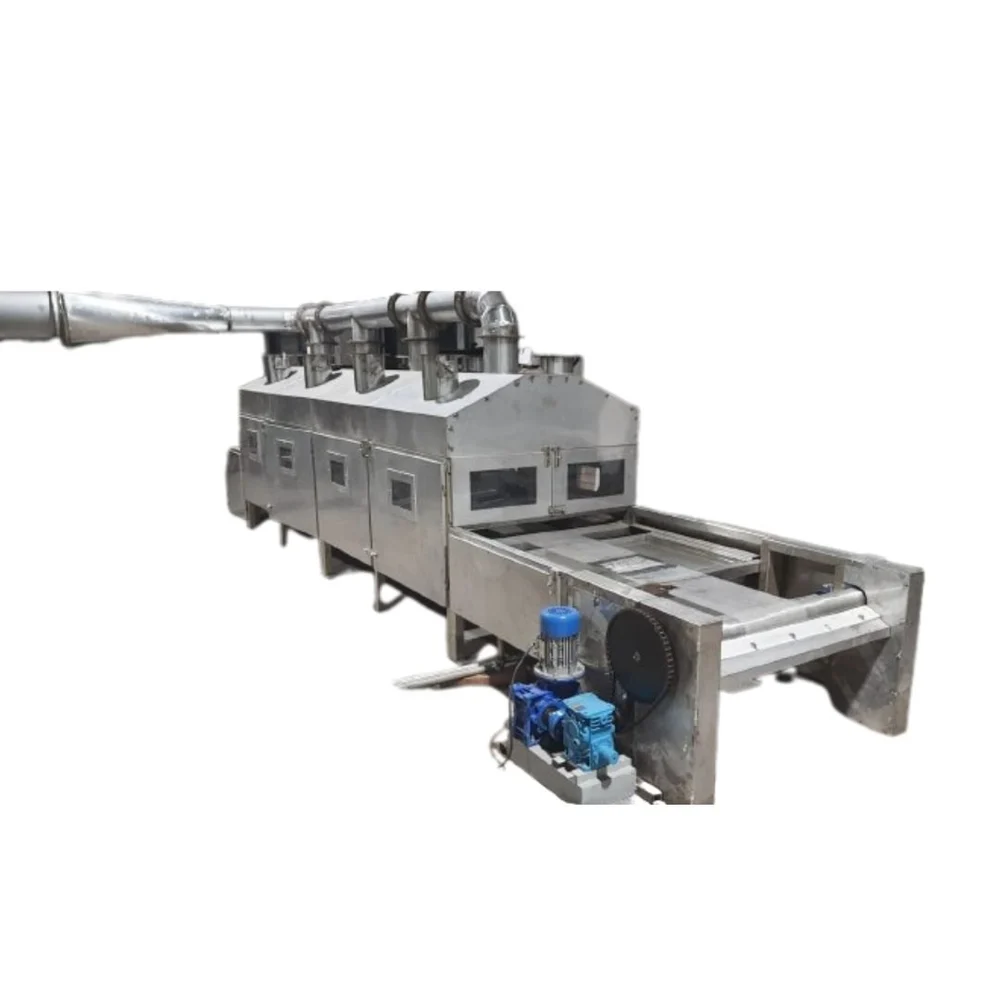

CRITICAL PARTS OF RW DRYER

ITEM DESCRIPTION:

1) Tubular design structure for strength and longevity of the machine.

2) Covered top hood for the dryer.

3) Hot water section made of Stainless Steel 304 Grade.

4) Inspection Glass Window.

5) A highly durable and effective imported Mylar belt for transmitting heat.

6) Infrared Lamps are provided for increasing the drying efficiency.

7) Stainless Steel Hopper for feeding arrangement.

8) Stainless Steel Spreader for distribution of the feed uniformly on belt surface.

9) Rubberized roller with tracking arrangement.

10) Top hood with Air Ventilation System for inlet air.

11) Highly Effective Exhaust System used to remove humid air from the chamber.

12) Stainless Steel scraper at discharge end for easy removal of the product.

13) Cleaning Brush for continuous automatic cleaning of the belt.

WATER HEATING SYSTEM

ITEM DESCRIPTION:

1) Electrical Water Heater to control and maintain the water temperature.

2) Internal Pipe, Pipe Fittings, Valve, Sensor, Gauge etc .

3) Hot water tank will be provided with the system.

SALIENT FEATURES

1) Hot Water trough and storage chamber.

2) Auto water temperature controller to maintain set temperature.

3) Digital thermometer to measure the temperature of the water beneath the film.

4) Electric heater for hot water trough.

ELECTRICAL

ITEM DESCRIPTION:

1) Free Standing type Central Control MCC Panel provided including :-Mild Steel 14 Gauge CRCA Powder Coated

Body,Temperature controller,Temperature Display, Indicator Lamp, Alarm, Start & Stop Push, Button etc.

Power Requirement :

Belt Drive. : 1.5 kW

Spreader Drive. : 0.75 kW

Heating Element :160 kW

Exhaust System :7.5 kW

Cleaning Brush :0.75 kW

Infrared Lamps :20 kW

Total Power Requirement. :190.5 kW (Approx.)
