Product Details

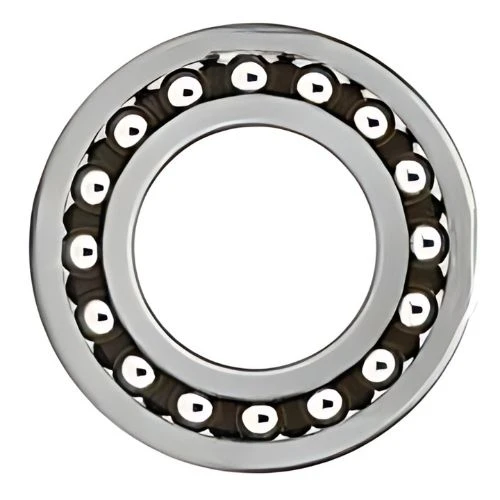

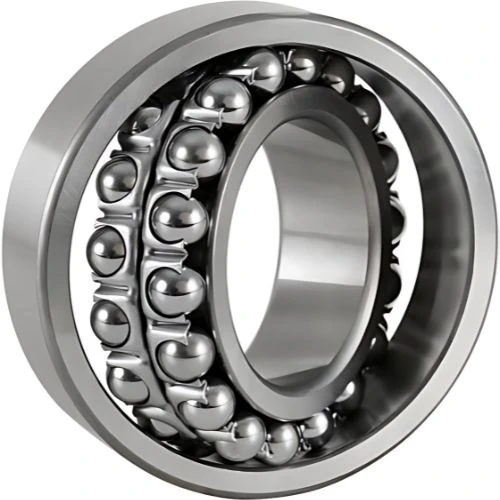

With two rows of balls and common spherical raceways in the outer ring, this type of ball bearing has self-aligning properties that allow it to function properly even with misalignment of the shaft with respect to the housing.
FEATURES & BENEFITS
Point contact on outer and inner racewayProvides less coefficient of friction which allows bearing to run at lower operating temperature and higher speed
Static and dynamic misalignment Sphered outer ring raceway design accommodates static and dynamic misalignment
Better surface finish of raceway Allows bearing to run at higher speeds
Higher load carrying capacity Two rows with increased number of balls permit heavy loads
Cage variants
Polyamide cage
o Reduced vibration and noise
o Reduced friction
Steel cage
o Most common design
o High strength
Brass cage
o Harsh application conditions
o High centrifugal loading
Sealed Self Aligned Ball Bearing
Specially designed to perform under a harsh operating environment in industries, NBC Sealed Self Aligning Ball bearing performs efficiently in highly contaminated conditions, reduces maintenance costs, and minimizes the possibilities of an unplanned shutdown.
Features
o Contact type Seals
o Seal material: Nitrile rubber seals as standard. (also available in high temperature Fluoroelastomer material)
o Pre-Greased
Benefits
o Longer operating life, reduced maintenance
o Protection against contamination and pollution thereby reducing the risk of bearing failure.
o Higher reliability
o Long service life
Size range : 10-200 mm OD
Cage variants : Brass, Steel, and Polyamide
Bore designs : Straight and Tapered (1:12)
Clearances : C2, CN, C3, and C4
Straight and Tapered (1:12)
