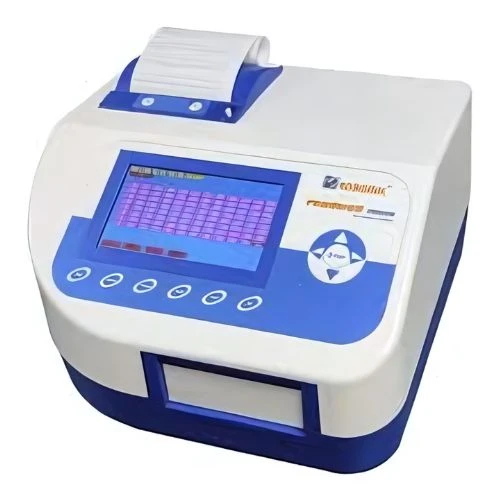

Complete Solution for ELISA & EΙΑ Tests

Features

• Accommodates different microplate geometries U, V & Flat
• Plate shaking facility with variable speed and duration
• Ability to read plate within seconds
• Digital light control with unique circuit for long lamp life
• Bichromatic readings
• Flexible controls and calibrators positioning
• Storage of calibration curves & controls
• External printer connectivity
• Patient report with PID & name
• Various Graph curve fit mode: Linear, Point to Point, 4 parameter log regression, Cubic Spline, Polynomial with scales such as Log Abs / Conc, Logit Abs / Log Conc, Abs / Conc,Log Abs / Log Conc etc.
• Matrix mode for result printing
• Storage of plate results
• Data transfer to computer with easy view of results in Excel format.

Technical Specifications

OPTICAL SYSTEM

Linear measurement range: 0.000 to 3.500 absorbance units (A)

Photometric accuracy: ±2% or 0.007 whichever is higher from 0 to 1.5 A, ±3% from 1.5 A to 3.5 A

Drift : <0.005 A/hr

Resolution : 0.001

Light source : Halogen

FILTERS

Type of filter : High quality narrow band interference

Wavelength : 405, 450, 492, 630 nm & two optional

Half bandwidth : < 10 nm

Selection : Automatic by stepper motor

MEMORY

Programs: 250 tests

Results: 9600 patient results retrieval Assay wise, Patient wise

PRINTER: On board thermal 52 columns, maintenance free

DISPLAY

Human machine interface: TOUCH PANEL & KEYPAD, 7" Graphics Color Display

POWER

Voltage: 115-230 Volts ±10%, 50-60 Hz

COMPUTER INTERFACE

RS232 Serial Port: 9600 baud, 8 data, 1 stop, no parity bits USB

ANALYSIS MODES: Absorbance, Cut-off, Multi-standard. % Absorbance, Single standard, Uptake, Ratio

Curve Plotting: Graphical representation on printer & display

Plate Carrier Movement: Precisely through stepper motor

Dimensions in mm (lxbxh): 405 x 380 x 280 (Approx)

Weight: 10 kgs. (Approx)
