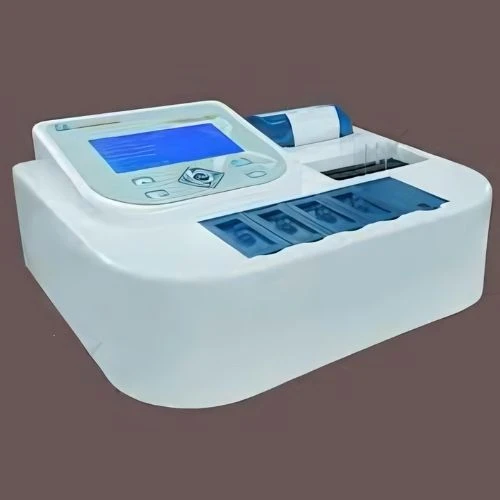

ROBONIK FOURCLOT Four Channel Coagulation Analyser

Special Features :

Coagulation :

• Four independent programmable coagulation channels for faster throughput.
• Display online results of all four channels simultaneously on single screen.
• Designed to perform all routine & special tests such as PT, APTT, TT, Fibrinogen, Factor II, V, VII, VIII, IX, X, XI, XII.
• Uniform mixing of Sample & Reagent with magnetic stirrer.
• Automatic sensing of sample/reagent dispensing to start the measurement.
• Multipoint Calibration curve with user entered standard dilution % in FIB and Factor Assay.
• Photometer:
• Independent channel for Photometric assays.
• Multipoint calibration curve with maximum 7 calibrators for Photometric assays.
• Chromogenic assays antithrombin III (AT-III), protein C (PC), protein S (PS), D-dimer.

Common Features :

• Effective temperature regulation system.
• Robust system with built in stabilizer.
• Storage Capacity of 250 open tests with QC and more than 2500 results.
• Independent memory for Coagulation and Photometric mode.
• Unique circuitry for long lamp life.

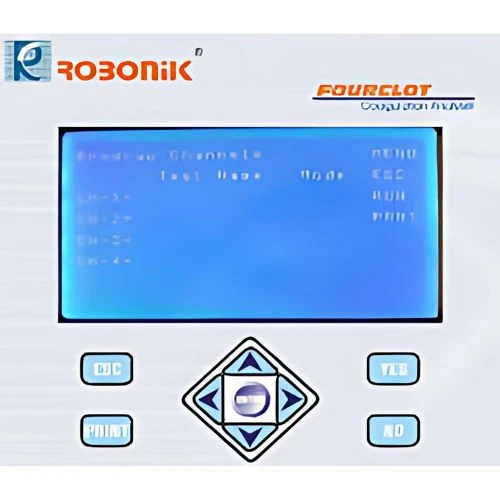

• Human machine interface: Touchpad, Keypad.
• Quality Control with Levey Jennings and standard deviation graphs.

Technical Specifications :

Coagulation:

Measuring System :  Photometric

Optical Measurement :  Photodiode

Measurement Volume : 150μl

Sample & Reagent Mixing :  With Magnetic Stirrer

Dry Block Incubator : 24 Positions Temperature at 37°c

Light Source  : LED/LASER/With 450 nm

Analysis Mode :  PT, APTT, TT, Fibrinogen, Factor Assay (Factor II, V, VII, VIII, IX, X, XI, XII)

Results Displayed in : Seconds, Ratio, INR, Concentration and %

Photometer:

Linear Measurement Range : 0.000 to 3.000 Absorbance Units (A)

Photometric Accuracy : ± 2% or 0.007 Whichever is Higher, From 0 to 1.5 A ± 3% from 1.5 A to 3.0 A

Optical Measurement  : Photodiode

Cuvette Volume : 500 μι

Filters Interference : 405, 630 nm (optional)

Light Source :  Tungsten Halogen

Warm Up Time : 90 Seconds

Analysis Mode:

• Absorbance
• Kinetic
• End Point
• Fixed Time

Common:

External Interface : RS 232 Serial Port

Power : 50 Watts/115-230 Volts ± 50/60 Hz

Operating Position : On Horizontal Flat, Rigid and Vibration Free Surface

Operating Conditions :

Temperature : From +18° C to 35°C

Relative Humidity : Up to 85%

Size (cms):  34.5 X 30 X 14.7 (I x b x h)

Weight : 5.4 kg (Approx)
