Features
- Specially designed Manifold assembly to prevent any scratching on bottom of well
- Auto rinse facility while shut down
- Ability to wash single strip of 8 wells
- User programmable soak time, wash cycles and dispensing volume

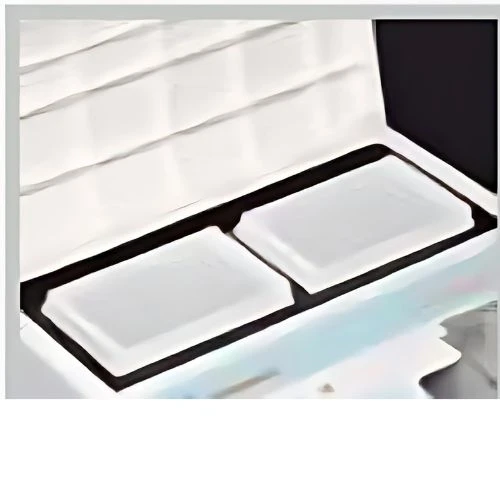

- On Board two plate incubator at 37°C with programmable timer.
- Continuous aspiration to prevent overflow
- Removable manifold
- Built-in stabilizer
- Auto detection of bottom of well and collision prevention
- Waste bottle full warning with audible alarm
Technical Specifications

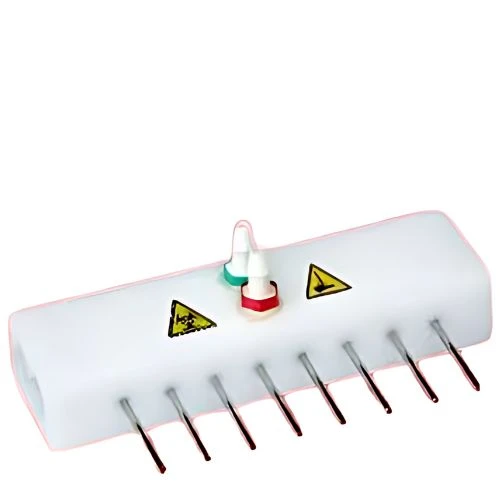

Manifold: 8 Way Manifold autoclavable
Dispensing: Programmable up to 1000 μι
ASPIRATING

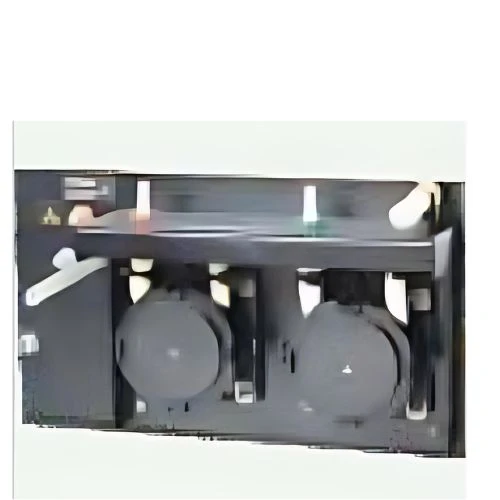

Method: Continuous through diaphragm pump while dispensing hence preventing overflow
Residual Volume : < 2 µl
Waste Bottle: One (Capacity 2 litres) with audible alarm
Wash Bottle: One (Capacity 2 litres)
Rinse Bottle: One (Capacity 2 litres)
Display: 16 digit alphanumeric fluorescent
Liquid contact materials: Silicon, Stainless Steel, Derline
Memory: 100 open Channels
Washing Method: Plate Wash, Strip Wash, Bottom Wash, Overflow Wash, Rinsing, Priming, Disinfect
Shaking: Multi step shaking
Incubator: For Two ELISA Plates, 37°C
Timer: Individually Programmable 2 Nos.
Power: 50 Watts/115-240 Volts ± 10%, 50/60 Hz.
Dimensions in mm (lxbxh): 330 x 405 x 175 (Approx)
Weight: 6 Kgs.
