Features
Technical Specifications

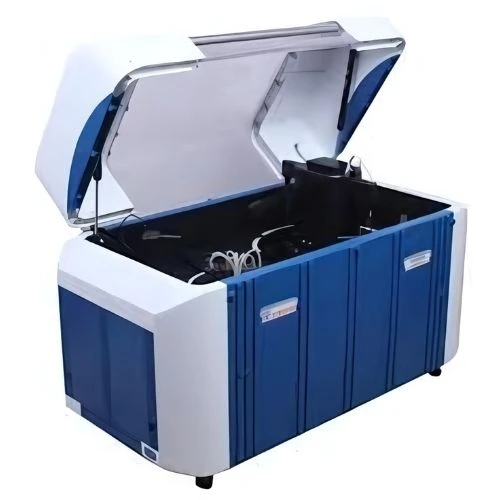

- Discrete, Random Access, Fully Automated, Compact, Bench Top Model
- Dual Probe, Individual Probes for Sample and Reagent with Liquid Level Sensor
- Onboard Cooling for Reagent Tray
- Onboard Laundry
- Minimal Water Consumption, less than 2 Litres per Working Hour
- Permanent Optical Glass Cuvettes
- Non Vacuumised Waste/Wash Bottles
- Q.C. with L.J. Plot and Westgard Rules
- Dedicated Onboard Mixer for R1 & R2
- STAT Sample Capability
- Built in Computer
Technical Specifications
System Information
System Type: Fully Automatic, Discrete, Random Access, STAT sample priority
Throughput: 200 Tests/Hour
Type of Tests: Routine and Special Biochemistry Enzymes, Substrates, Drug Assays, Serum Proteins
Analysis Mode: End Point, Fixed Time, Kinetic, Linear/Non-Linear Multipoint Calibration
Programming: Open System for User Defined Profiles and Calculations
Optical System
Filters: Interference Filters 340, 405,450, 510, 545, 578, 630, 700 nm + 2 Optional
Absorbance Range: 0.000 to 3.000 Abs. Unit
Calibration & Control
Linear (1 Point, 2 Point, Multipoint), Point to Point
Quality Control by Levey Jennings / Westgard Rules
Working Conditions
Power Supply: 115-230 volts, 50-60 Hz ± 10%
Power: 300 VA
Relative Humidity: up to 80%
Dimensions in mm (lxbxh): 890 x 430 x 580 (Approx)
Weight: 45 kg. (Approx)
